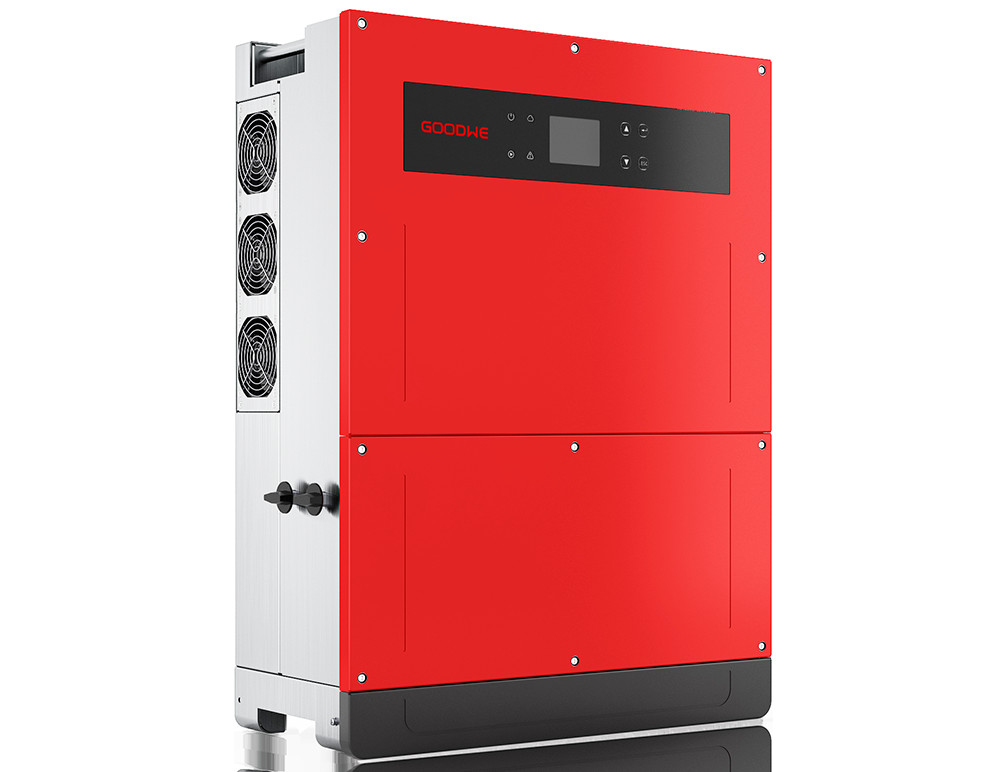

GW75KBF-MT 75kW Goodwe On Grid Inverter Three phase on grid solar inverter commercial industrial solar inverter

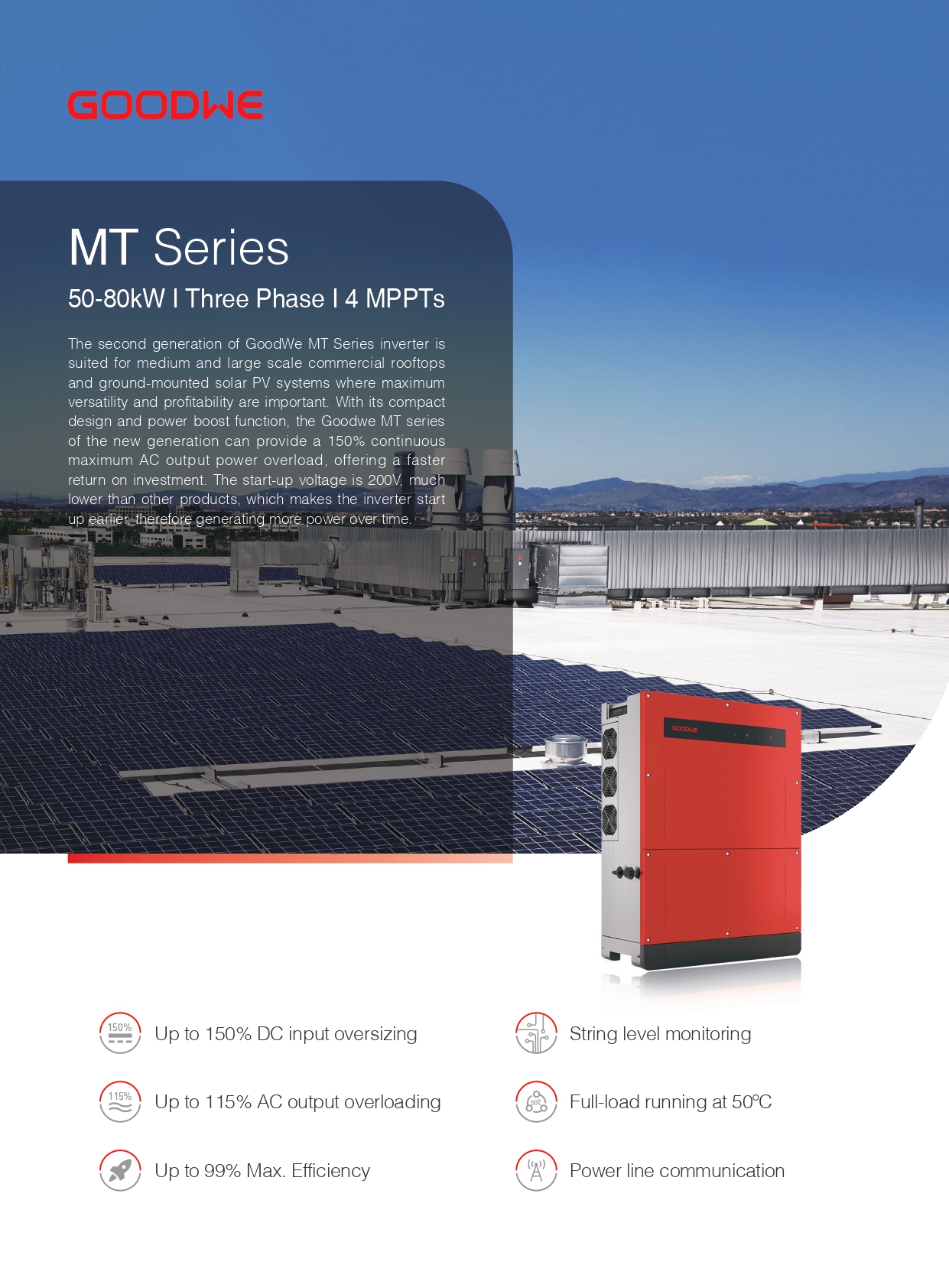

MT Series
Technical Data	GW50KN -MT	GW60KN -MT	GW50KBF -MT	GW60KBF -MT	GW75KBF -MT	GW80KBF -MT	GW70KHV -MT	GW80KHV -MT	GW75K -MT	GW80K -MT
Input
Max. Input Voltage (V)	1100	1100	1100	1100	1100	1100	1100	1100	1100	1100
MPPT Operating Voltage Range (V)	200 ~ 1000	200 ~ 1000	200 ~ 1000	200 ~ 1000	200 ~ 1000	200 ~ 1000	200 ~ 1000	200 ~ 1000	200 ~ 1000	200 ~ 1000
Start-up Voltage (V)	200	200	200	200	200	200	200	200	200	200
Nominal Input Voltage (V)	620	620	620	620	750	800	750	800	600	620
Max. Input Current per MPPT (A)	33 / 33 / 22 / 22	33	30	44	44	39	33	44	44	44
Max. Short Circuit Current per MPPT (A)	41.5 / 41.5 / 27.5 / 27.5	41.5	37.5	55.0	55.0	54.8	41.5	55.0	55.0	55.0
Number of MPP Trackers	4	4	4	4	4	4	4	4	4	4
Number of Strings per MPPT	3 / 3 / 2 / 2	3	2	3	3	3	3	4	4 (Standard), 3 (Optional, Support bifacial module)
Output
Nominal Output Power (W)	50000	60000	50000	60000	75000	80000	70000	80000	75000	80000
Nominal Output Apparent Power (VA)	50000	60000	50000	60000	75000	80000	70000	80000	75000	80000
Max. AC Active Power (W)	55000; 57500 @415V*1	66000; 69000 @415V*1	55000; 57500 @415V*1	66000; 69000 @415V*1	82500*1	88000*1	77000*1	88000*1	75000	88000*1
Max. AC Apparent Power (VA)	55000; 57500 @415V*2	66000; 69000 @415V*2	55000; 57500 @415V*2	66000; 69000 @415V*2	82500*2	88000*2	77000*2	88000*2	75000	88000*2
Nominal Output Voltage (V)	400, 3L / N / PE or 3L / PE				500, 3L / PE	540, 3L / PE	500, 3L / PE	540, 3L / PE	400, 3L / N / PE or 3L / PE
Nominal AC Grid Frequency (Hz)	50 / 60	50 / 60	50 / 60	50 / 60	50 / 60	50 / 60	50 / 60	50 / 60	50 / 60	50 / 60
Max. Output Current (A)	80.0	96.0	80.0	96.0	95.3	94.1	89.0	94.1	133.0	133.0
Power Factor				~1 (adjustable from 0.8 lagging to 0.8 leading)
Max. Total Harmonic Distortion	<3%	<3%	<3%	<3%	<3%	<3%	<3%	<3%	<3%	<3%
Efficiency
Max. Efficiency	98.7%	98.8%	98.8%	98.8%	99.0%	99.0%	99.0%	99.0%	98.8%	98.8%
European Efficiency	98.3%	98.5%	98.3%	98.3%	98.4%	98.4%	98.4%	98.4%	98.3%	98.3%
Protection
PV String Current Monitoring	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated
PV Insulation Resistance Detection	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated
Residual Current Monitoring	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated
PV Reverse Polarity Protection	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated
Anti-islanding Protection	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated
AC Overcurrent Protection	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated
AC Short Circuit Protection	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated
AC Overvoltage Protection	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated
DC Switch	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
DC Surge Protection	Type II	Type II	Type II	Type II	Type II	Type II	Type II	Type II	Type II	Type II
AC Surge Protection	Type II	Type II	Type II	Type II	Type II	Type II	Type II	Type II	Type II	Type II
AFCI	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
PID Recovery	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
General Data
Operating Temperature Range (°C)	-30 ~ +60	-30 ~ +60	-30 ~ +60	-30 ~ +60	-30 ~ +60	-30 ~ +60	-30 ~ +60	-30 ~ +60	-30 ~ +60	-30 ~ +60
Relative Humidity	0 ~ 100%	0 ~ 100%	0 ~ 100%	0 ~ 100%	0 ~ 100%	0 ~ 100%	0 ~ 100%	0 ~ 100%	0 ~ 100%	0 ~ 100%
Max. Operating Altitude (m)	4000	4000	4000	4000	4000	4000	4000	4000	£4000	£4000
Cooling Method				Smart Fan Cooling					Fan Cooling
User Interface	LED, LCD (Optional), WiFi + APP			LED, WiFi + APP			LED, LCD (Optional), WiFi + APP	LED, WiFi + APP
Communication			RS485, WiFi or PLC (Optional)						RS485, WiFi, PLC (Optional)
Weight (kg)	59.0	64.0	60.0	65.0	65.0	65.0	60.0	65.0	70.0	70.0
Dimension (W × H × D mm)	586 × 788 × 264			586 × 788 × 267			586 × 788 × 264	586 × 788 × 267
Topology					Non-isolated
Self-consumption at Night (W)	<1	<1	<1	<1	<1	<1	<1	<1	<1	<1
Ingress Protection Rating	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65
DC Connector	MC4 (4 ~ 6mm²)		-	-	-	-	-	-	-	MC4 (4 ~ 6mm²)
*1: For Chile Max. AC Active Power (W): GW50KN-MT is 50000; GW60KN-MT is 60000; GW50KBF-MT is 50000; GW60KBF-MT is 60000; GW75KBF-MT is 75000; GW80KBF-MT is 80000; GW70KHV-MT is 70000; GW80KHV-MT is 80000; GW80K-MT is 80000. *2: For Chile Max. AC Apparent Power (VA): GW50KN-MT is 50000; GW60KN-MT is 60000; GW50KBF-MT is 50000; GW60KBF-MT is 60000; GW75KBF-MT is 75000; GW80KBF-MT is 80000; GW70KHV-MT is 70000; GW80KHV-MT is 80000; GW80K-MT is 80000. *: Please visit GoodWe website for the latest certificates.
