| Brand Name : | Goodwe |
| Model Number : | GW30K-MT |
| Certification : | SAA / CE / ROHS / ISO9001 / CCC |
| Price : | negotiable |
| Supply Ability : | 1000units/week |

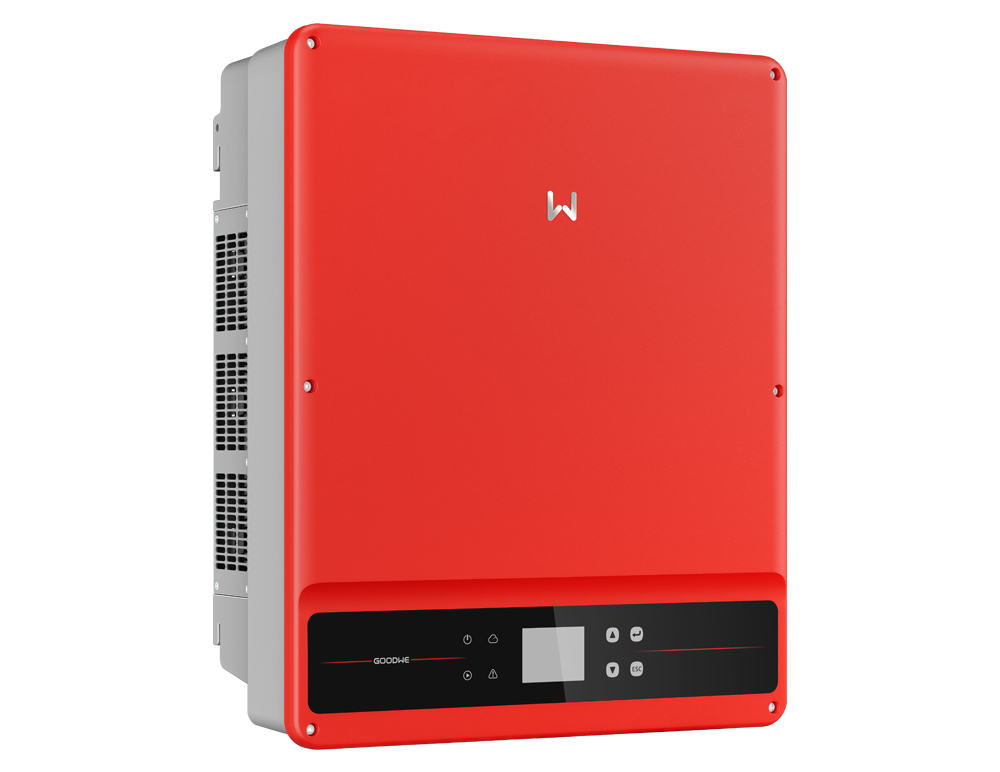

GW30K-MT Goodwe On Grid Inverter 30kW Three phase on grid solar
inverter commercial industrial solar inverter
| Input | ||
| Max. Input Voltage (V) | 1100 | 1100 |
| MPPT Operating Voltage Range (V) | 200 ~ 950 | 200 ~ 950 |
| Start-up Voltage (V) | 180 | 180 |
| Nominal Input Voltage (V) | 600 | 600 |
| Max. Input Current per MPPT (A) | 30 | 30 |
| Max. Short Circuit Current per MPPT (A) | 37.5 | 37.5 |
| Number of MPP Trackers | 5 | 6 |
| Number of Strings per MPPT | 2 | 2 |
| Output | ||
| Nominal Output Power (kW) | 50 | 60 |
| Nominal Output Apparent Power (kVA) | 50 | 60 |
| Max. AC Active Power (kW) | 55*1 | 66*1 |
| Max. AC Apparent Power (kVA) | 55*2 | 66*2 |
| Nominal Output Voltage (V) | 230 / 400*3, 3L / N / PE or 3L / PE | 230 / 400*3, 3L / N / PE or 3L / PE |
| Output Voltage Range (V) | 320 ~ 460 | 320 ~ 460 |
| Nominal AC Grid Frequency (Hz) | 50 / 60 | 50 / 60 |
| AC Grid Frequency Range (Hz) | 45 ~ 55 / 55 ~ 65 | 45 ~ 55 / 55 ~ 65 |
| Max. Output Current (A) | 80.0 | 96.0 |
| Output Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | |
| Max. Total Harmonic Distortion | <3% | <3% |
| Efficiency | ||
| Max. Efficiency | 98.6% | 98.6% |
| European Efficiency | 98.1% | 98.1% |
| Protection | ||
| PV String Current Monitoring | Integrated | Integrated |
| PV Insulation Resistance Detection | Integrated | Integrated |
| Residual Current Monitoring | Integrated | Integrated |
| PV Reverse Polarity Protection | Integrated | Integrated |
| Anti-islanding Protection | Integrated | Integrated |
| AC Overcurrent Protection | Integrated | Integrated |
| AC Short Circuit Protection | Integrated | Integrated |
| AC Overvoltage Protection | Integrated | Integrated |
| DC Switch | Integrated*4 | Integrated*4 |
| DC Surge Protection | Type II (Type I Optional) | Type II (Type I Optional) |
| AC Surge Protection | Type II | Type II |
| AFCI | Optional | Optional |
| Emergency Power Off*5 | Integrated | Integrated |
| Remote Shutdown*6 | Optional | Optional |
| PID Recovery | Optional | Optional |
| General Data | ||
| Operating Temperature Range (°C) | -30 ~ +60 | -30 ~ +60 |
| Relative Humidity | 0 ~ 100% | 0 ~ 100% |
| Max. Operating Altitude (m) | 3000 | 3000 |
| Cooling Method | Smart Fan Cooling | Smart Fan Cooling |
| User Interface | LED, LCD (Optional), WLAN + APP | LED, LCD (Optional), WLAN + APP |
| Communication | RS485, WiFi or 4G or PLC (Optional)*7 | RS485, WiFi or 4G or PLC (Optional)*7 |
| Communication Protocols | Modbus-RTU (SunSpec Compliant) | Modbus-RTU (SunSpec Compliant) |
| Weight (kg) | 55 | 55 |
| Dimension (W × H × D mm) | 520 × 660 × 220 | 520 × 660 × 220 |
| Topology | Non-isolated | Non-isolated |
| Self-consumption at Night (W) | <1 | <1 |
| Ingress Protection Rating | IP65 | IP65 |
| DC Connector | MC4 (4 ~ 6mm²) | MC4 (4 ~ 6mm²) |
| AC Connector | OT / DT Terminal (Max. 50mm²) | OT / DT Terminal (Max. 50mm²) |
|
|
