| Brand Name : | Goodwe |
| Model Number : | GW3600-EH |
| Certification : | SAA / CE / ROHS / ISO9001 / CCC |
| Price : | negotiable |
| Supply Ability : | 1000units/week |

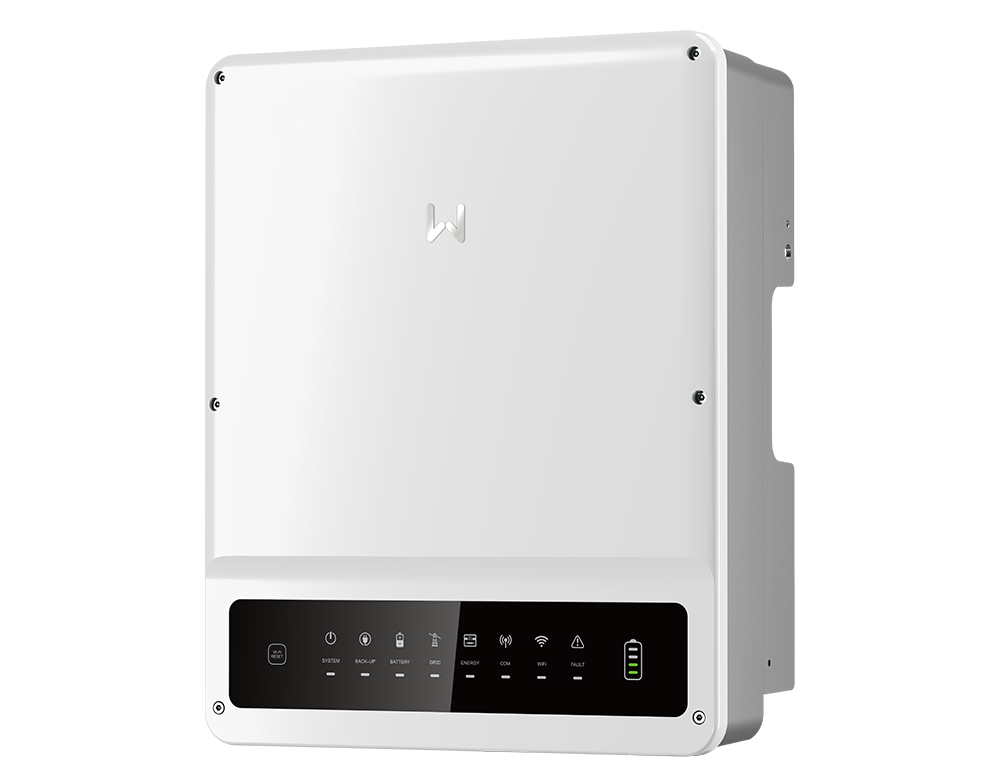

Goodwe EH Series GW3600-EH Hybrid Solar Inverter Goodwe Hybrid Inverter 3.6kW Single Phase hybrid inverter
| Battery Input Data | |||
| Battery Type | Li-Ion | Li-Ion | Li-Ion |
| Nominal Battery Voltage (V) | 350 | 350 | 350 |
| Battery Voltage Range (V) | 85 ~ 460 | 85 ~ 460 | 85 ~ 460 |
| Max. Continuous Charging Current (A) | 25 | 25 | 25 |
| Max. Continuous Discharging Current (A) | 25 | 25 | 25 |
| Max. Charging Power (W) | 3600 | 5000 | 6000 |
| Max. Discharging Power (W) | 3600 | 5000 | 6000 |
| PV String Input Data | |||
| Max. Input Power (W) | 4800 | 6650 | 8000 |
| Max. Input Voltage (V) | 580 | 580 | 580 |
| MPPT Operating Voltage Range (V) | 100 ~ 550 | 100 ~ 550 | 100 ~ 550 |
| Start-up Voltage (V) | 90 | 90 | 90 |
| Nominal Input Voltage (V) | 380 | 380 | 380 |
| Max. Input Current per MPPT (A) | 12.5 | 12.5 | 12.5 |
| Max. Short Circuit Current per MPPT (A) | 15.2 | 15.2 | 15.2 |
| Number of MPP Trackers | 2 | 2 | 2 |
| Number of Strings per MPPT | 1 | 1 | 1 |
| AC Output Data (On-grid) | |||
| Nominal Apparent Power Output to Utility Grid (VA)*1 | 3600 | 5000 | 6000 |
| Max. Apparent Power Output to Utility Grid (VA)*1 | 3600 | 5000 | 6000 |
| Max. Apparent Power from Utility Grid (VA) | 7200 (Charging 3.6kw, Backup Output 3.6kw) | 10000 (Charging 5kw, Backup Output 5kw) | 12000 (Charging 6kW, Backup Output 6kW) |
| Nominal Output Voltage (V) | 230 / 220*4 | 230 / 220*4 | 230 / 220*4 |
| Output Voltage Range (V) | 0 ~ 300 | 0 ~ 300 | 0 ~ 300 |
| Nominal AC Grid Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 |
| AC Grid Frequency Range (Hz) | 45 ~ 65 | 45 ~ 65 | 45 ~ 65 |
| Max. AC Current Output to Utility Grid (A) | 16.0 | 21.7 | 26.1 / 27.3*5 |
| Max. AC Current From Utility Grid (A) | 32.0 | 43.4 | 52.2 |
| Power Factor | Adjustable from 0.8 leading to 0.8 lagging | ||
| Max. Total Harmonic Distortion | <3% | <3% | <3% |
| AC Output Data (Back-up) | |||
| Back-up Nominal Apparent Power (VA) | 3600 | 5000 | 6000 |
| Max. Output Apparent Power (VA) | 3600 (4320@60sec) | 5000 (6000@60sec) | 6000 (7200@60sec) |
| Max. Output Current (A) | 15.7 | 21.7 | 26.1 |
| Nominal Output Voltage (V) | 230 (±2%) | 230 (±2%) | 230 (±2%) |
| Nominal Output Frequency (Hz) | 50 / 60 (±0.2%) | 50 / 60 (±0.2%) | 50 / 60 (±0.2%) |
| Output THDv (@Linear Load) | <3% | <3% | <3% |
| Efficiency | |||
| Max. Efficiency | 97.6% | 97.6% | 97.6% |
| European Efficiency | 97.0% | 97.0% | 97.0% |
| Max. Battery to AC Efficiency | 96.6% | 96.6% | 96.6% |
| MPPT Efficiency | 99.9% | 99.9% | 99.9% |
| Protection | |||
| PV Insulation Resistance Detection | Integrated | Integrated | Integrated |
| Residual Current Monitoring | Integrated | Integrated | Integrated |
| Battery Reverse Polarity Protection | Integrated | Integrated | Integrated |
| Anti-islanding Protection | Integrated | Integrated | Integrated |
| AC Overcurrent Protection | Integrated | Integrated | Integrated |
| AC Short Circuit Protection | Integrated | Integrated | Integrated |
| AC Overvoltage Protection | Integrated | Integrated | Integrated |
| General Data | |||
| Operating Temperature Range (°C) | -25 ~ +60 | -25 ~ +60 | -25 ~ +60 |
| Relative Humidity | 0 ~ 95% | 0 ~ 95% | 0 ~ 95% |
| Max. Operating Altitude (m) | 3000*6 | 3000*6 | 3000*6 |
| Cooling Method | Natural Convection | Natural Convection | Natural Convection |
| User Interface | LED, APP | LED, APP | LED, APP |
| Communication with BMS*2 | RS485, CAN | RS485, CAN | RS485, CAN |
| Communication with Meter | RS485 | RS485 | RS485 |
| Communication with Portal | Wi-Fi / Ethernet (Optional) | Wi-Fi / Ethernet (Optional) | Wi-Fi / Ethernet (Optional) |
| Weight (kg) | 17 | 17 | 17 |
| Dimension (W × H × D mm) | 354 × 433 × 147 | 354 × 433 × 147 | 354 × 433 × 147 |
| Topology | Non-isolated | Non-isolated | Non-isolated |
| Self-consumption at Night (W)*3 | <10 | <10 | <10 |
| Ingress Protection Rating | IP65 | IP65 | IP65 |
| Mounting Method | Wall Mounted | Wall Mounted | Wall Mounted |
|
|
