| Brand Name : | Goodwe |
| Model Number : | GW5048D-ES |
| Certification : | SAA / CE / ROHS / ISO9001 / CCC |
| Price : | negotiable |
| Supply Ability : | 1000units/week |

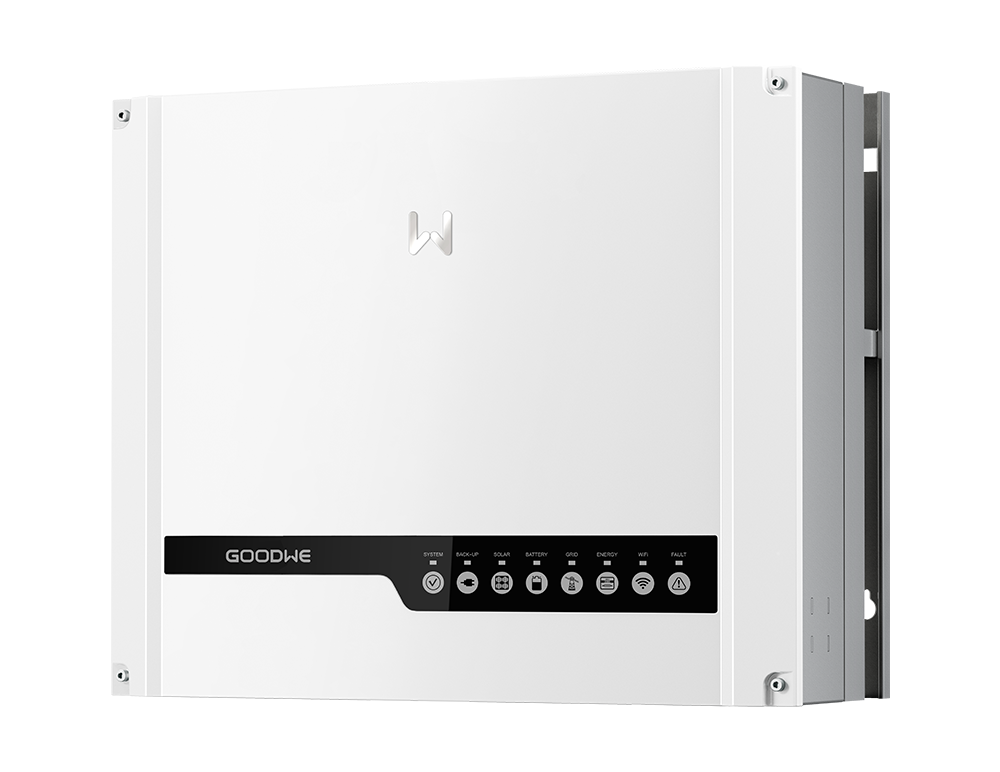

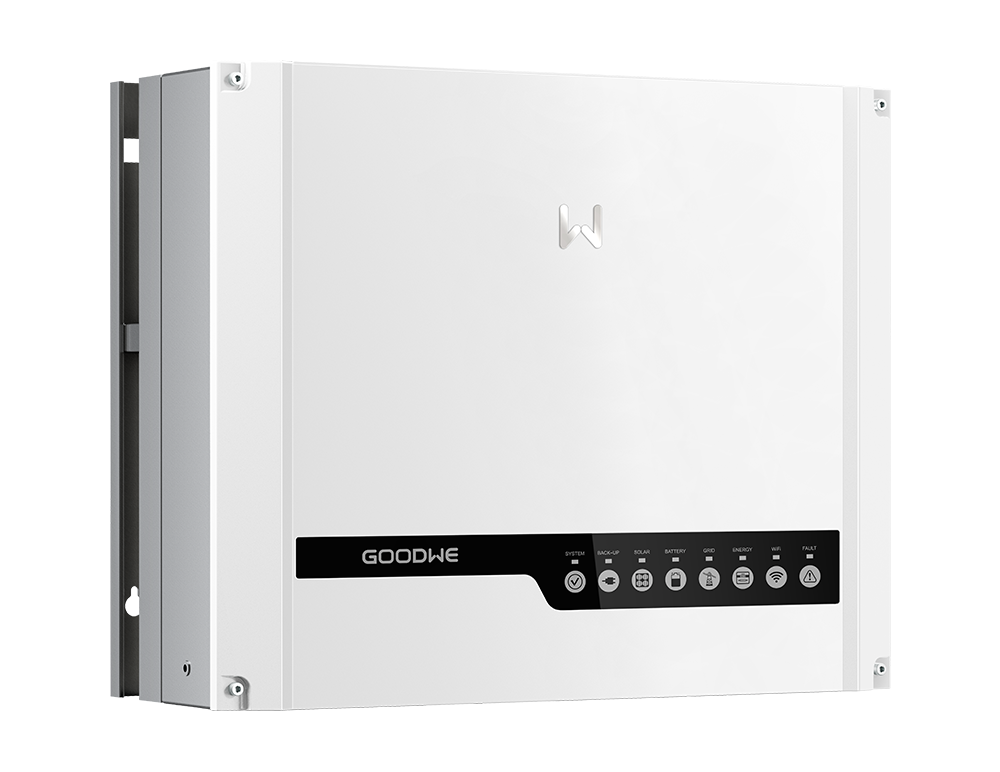

Goodwe ES Series GW5048D-ES 5kW Hybrid Solar Inverter Goodwe Hybrid Inverter Single Phase 2 MPPTs Hybrid inverter (LV)

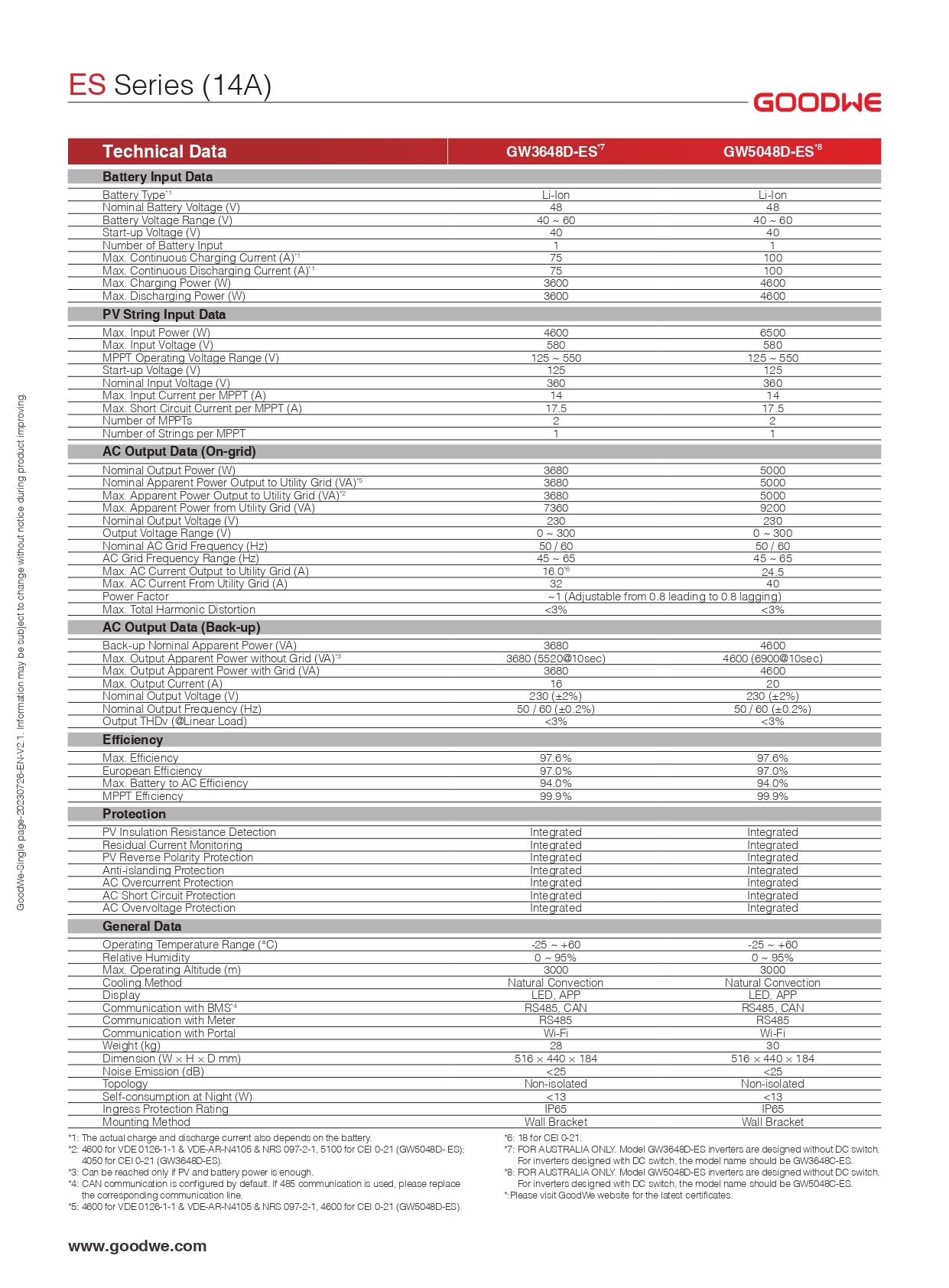

| Battery Input Data | |||
| Battery Type*1 | Li-Ion | Li-Ion | |
| Nominal Battery Voltage (V) | 48 | 48 | |
| Battery Voltage Range (V) | 40 ~ 60 | 40 ~ 60 | |
| Start-up Voltage (V) | 40 | 40 | |
| Number of Battery Input | 1 | 1 | |
| Max. Continuous Charging Current (A)*1 | 75 | 100 | |
| Max. Continuous Discharging Current (A)*1 | 75 | 100 | |
| Max. Charging Power (W) | 3600 | 4600 | |
| Max. Discharging Power (W) | 3600 | 4600 | |
| PV String Input Data | |||
| Max. Input Power (W) | 4600 | 6500 | |
| Max. Input Voltage (V) | 580 | 580 | |
| MPPT Operating Voltage Range (V) | 125 ~ 550 | 125 ~ 550 | |
| Start-up Voltage (V) | 125 | 125 | |
| Nominal Input Voltage (V) | 360 | 360 | |
| Max. Input Current per MPPT (A) | 14 | 14 | |
| Max. Short Circuit Current per MPPT (A) | 17.5 | 17.5 | |
| Number of MPPTs | 2 | 2 | |
| Number of Strings per MPPT | 1 | 1 | |
| AC Output Data (On-grid) | |||
| Nominal Output Power (W) | 3680 | 5000 | |
| Nominal Apparent Power Output to Utility Grid (VA)*5 | 3680 | 5000 | |
| Max. Apparent Power Output to Utility Grid (VA)*2 | 3680 | 5000 | |
| Max. Apparent Power from Utility Grid (VA) | 7360 | 9200 | |
| Nominal Output Voltage (V) | 230 | 230 | |
| Output Voltage Range (V) | 0 ~ 300 | 0 ~ 300 | |
| Nominal AC Grid Frequency (Hz) | 50 / 60 | 50 / 60 | |
| AC Grid Frequency Range (Hz) | 45 ~ 65 | 45 ~ 65 | |
| Max. AC Current Output to Utility Grid (A) | 16.0*6 | 24.5 | |
| Max. AC Current From Utility Grid (A) | 32 | 40 | |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | ||
| Max. Total Harmonic Distortion | <3% | <3% | |
| AC Output Data (Back-up) | |||
| Back-up Nominal Apparent Power (VA) | 3680 | 4600 | |
| Max. Output Apparent Power without Grid (VA)*3 | 3680 (5520@10sec) | 4600 (6900@10sec) | |
| Max. Output Apparent Power with Grid (VA) | 3680 | 4600 | |
| Max. Output Current (A) | 16 | 20 | |
| Nominal Output Voltage (V) | 230 (±2%) | 230 (±2%) | |
| Nominal Output Frequency (Hz) | 50 / 60 (±0.2%) | 50 / 60 (±0.2%) | |
| Output THDv (@Linear Load) | <3% | <3% | |
| Efficiency | |||
| Max. Efficiency | 97.6% | 97.6% | |
| European Efficiency | 97.0% | 97.0% | |
| Max. Battery to AC Efficiency | 94.0% | 94.0% | |
| MPPT Efficiency | 99.9% | 99.9% | |
| Protection | |||
| PV Insulation Resistance Detection | Integrated | Integrated | |
| Residual Current Monitoring | Integrated | Integrated | |
| PV Reverse Polarity Protection | Integrated | Integrated | |
| Anti-islanding Protection | Integrated | Integrated | |
| AC Overcurrent Protection | Integrated | Integrated | |
| AC Short Circuit Protection | Integrated | Integrated | |
| AC Overvoltage Protection | Integrated | Integrated | |
| General Data | |||
| Operating Temperature Range (°C) | -25 ~ +60 | -25 ~ +60 | |
| Relative Humidity | 0 ~ 95% | 0 ~ 95% | |
| Max. Operating Altitude (m) | 3000 | 3000 | |
| Cooling Method | Natural Convection | Natural Convection | |
| Display | LED, APP | LED, APP | |
| Communication with BMS*4 | RS485, CAN | RS485, CAN | |
| Communication with Meter | RS485 | RS485 | |
| Communication with Portal | Wi-Fi | Wi-Fi | |
| Weight (kg) | 28 | 30 | |
| Dimension (W × H × D mm) | 516 × 440 × 184 | 516 × 440 × 184 | |
| Noise Emission (dB) | <25 | <25 | |
| Topology | Non-isolated | Non-isolated | |
| Self-consumption at Night (W) | <13 | <13 | |
| Ingress Protection Rating | IP65 | IP65 | |
| Mounting Method | Wall Bracket | Wall Bracket | |
| *1: The actual charge and discharge current also depends on the
battery. *2: 4600 for VDE 0126-1-1 & VDE-AR-N4105 & NRS 097-2-1, 5100 for CEI 0-21 (GW5048D- ES); 4050 for CEI 0-21 (GW3648D-ES). *3: Can be reached only if PV and battery power is enough. *4: CAN communication is configured by default. If 485 communication is used, please replace the corresponding communication line. *5: 4600 for VDE 0126-1-1 & VDE-AR-N4105 & NRS 097-2-1, 4600 for CEI 0-21 (GW5048D-ES). | *6: 18 for CEI 0-21. *7: FOR AUSTRALIA ONLY. Model GW3648D-ES inverters are designed without DC switch. For inverters designed with DC switch, the model name should be GW3648C-ES. *8: FOR AUSTRALIA ONLY. Model GW5048D-ES inverters are designed without DC switch. For inverters designed with DC switch, the model name should be GW5048C-ES. *:Please visit GoodWe website for the latest certificates. | ||
|
|
