| Brand Name : | Goodwe |
| Model Number : | GW5000-EHB |
| Certification : | SAA / CE / ROHS / ISO9001 / CCC |
| Price : | negotiable |
| Supply Ability : | 1000units/week |

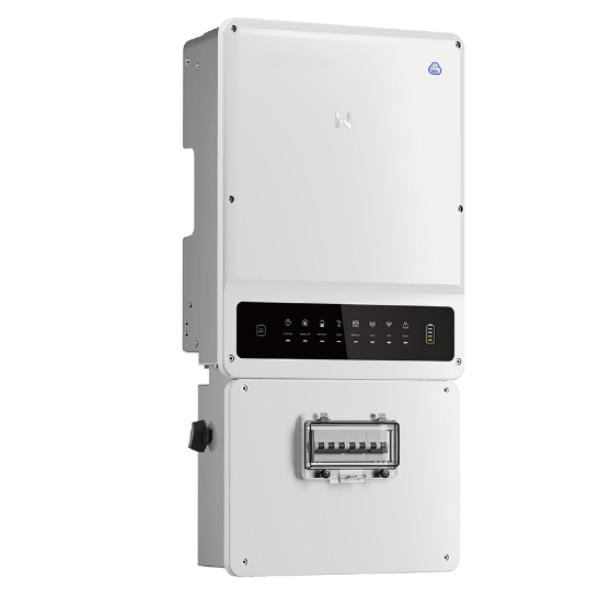

Goodwe EHB Series GW5000-EHB 5kW Goodwe Hybrid Inverter Hybrid Solar Inverter Single Phase Hybrid inverter
| Battery Input Data | ||||
| Battery Type | Li-Ion (BYD HVM & HVS, Pylon H1 & H2, LG RESH10-TypeR, GOODWE LX S-H, GOODWE LX F) | |||
| Nominal Battery Voltage (V) | 360 | 360 | 360 | 360 |
| Battery Voltage Range (V)*1 | 80 ~ 495 | 80 ~ 495 | 80 ~ 495 | 80 ~ 495 |
| Max. Continuous Charging Current (A) | 50 | 50 | 50 | 50 |
| Max. Continuous Discharging Current (A) | 50 | 50 | 50 | 50 |
| Max. Charging Power (W) | 5000 | 6500 | 8600 | 10000 |
| Max. Discharging Power (W) | 5250 | 6825 | 9030 | 10500 |
| PV String Input Data | ||||
| Max. Input Voltage (V)*2 | 600 | 600 | 600 | 600 |
| MPPT Operating Voltage Range (V)*3 | 80 ~ 550 | 80 ~ 550 | 80 ~ 550 | 80 ~ 550 |
| Start-up Voltage (V) | 95 | 95 | 95 | 95 |
| Nominal Input Voltage (V) | 380 | 380 | 380 | 380 |
| Max. Input Current per MPPT (A) | 13 | 13 | 13 | 13 |
| Max. Short Circuit Current per MPPT (A) | 16.3 | 16.3 | 16.3 | 16.3 |
| Number of MPP Trackers | 3 | 4 | 4 | 4 |
| Number of Strings per MPPT | 1 | 1 | 1 | 1 |
| AC Output Data (On-grid) | ||||
| Nominal Apparent Power Output to Utility Grid (VA) | 5000 | 6500 | 8600 | 10000 |
| Max. Apparent Power Output to Utility Grid (VA)*4 | 5000 | 6500 | 8600 | 10000 |
| Max. Apparent Power from Utility Grid (VA) | 6000 | 7800 | 10000 | 10000 |
| Nominal Output Voltage (V) | 230 | 230 | 230 | 230 |
| Nominal AC Grid Frequency (Hz) | 50 | 50 | 50 | 50 |
| Max. AC Current Output to Utility Grid (A) | 23.0 | 28.5 | 39.0 | 43.5 |
| Max. AC Current From Utility Grid (A) | 27.0 | 34.0 | 45.5 | 45.5 |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | |||
| Max. Total Harmonic Distortion | <3% | <3% | <3% | <3% |
| AC Output Data (Back-up) | ||||
| Back-up Nominal Apparent Power (VA) | 5000 | 6500 | 8600 | 10000 |
| Max. Output Apparent Power (VA)*5 | 5000 (6000@60sec) | 6500 (7800@60sec) | 8600 (10320@60sec) | 10000 (12000@60sec) |
| Max. Output Current (A) | 23.0 | 28.5 | 39.0 | 43.5 |
| Nominal Output Voltage (V) | 230 (±2%) | 230 (±2%) | 230 (±2%) | 230 (±2%) |
| Nominal Output Frequency (Hz) | 50 (±0.2%) | 50 (±0.2%) | 50 (±0.2%) | 50 (±0.2%) |
| Output THDv (@Linear Load) | <3% | <3% | <3% | <3% |
| Efficiency | ||||
| Max. Efficiency | 97.6% | 97.6% | 97.6% | 97.6% |
| CEC Efficiency | 97.0% | 97.0% | 97.0% | 97.0% |
| Max. Battery to AC Efficiency | 96.5% | 96.5% | 96.5% | 96.5% |
| MPPT Efficiency | 99.9% | 99.9% | 99.9% | 99.9% |
| Protection | ||||
| PV Insulation Resistance Detection | Integrated | Integrated | Integrated | Integrated |
| Residual Current Monitoring | Integrated | Integrated | Integrated | Integrated |
| PV Reverse Polarity Protection | Integrated | Integrated | Integrated | Integrated |
| Battery Reverse Polarity Protection | Integrated | Integrated | Integrated | Integrated |
| Anti-islanding Protection | Integrated | Integrated | Integrated | Integrated |
| AC Overcurrent Protection | Integrated | Integrated | Integrated | Integrated |
| AC Short Circuit Protection | Integrated | Integrated | Integrated | Integrated |
| AC Overvoltage Protection | Integrated | Integrated | Integrated | Integrated |
| DC Switch | Integrated | Integrated | Integrated | Integrated |
| AC Switch | Integrated | Integrated | Integrated | Integrated |
| DC Surge Protection | Type II | Type II | Type II | Type II |
| AC Surge Protection | Type II | Type II | Type II | Type II |
| AFCI | Optional | Optional | Optional | Optional |
| Rapid Shutdown | Optional | Optional | Optional | Optional |
| General Data | ||||
| Operating Temperature Range (°C) | -35 ~ +60 | -35 ~ +60 | -35 ~ +60 | -35 ~ +60 |
| Relative Humidity | 0 ~ 95% | 0 ~ 95% | 0 ~ 95% | 0 ~ 95% |
| Max. Operating Altitude (m) | 4000 | 4000 | 4000 | 4000 |
| Cooling Method | Smart Fan Cooling | Smart Fan Cooling | Smart Fan Cooling | Smart Fan Cooling |
| User Interface | LED, WLAN + APP | LED, WLAN + APP | LED, WLAN + APP | LED, WLAN + APP |
| Communication with BMS | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN |
| Communication with Meter | RS485 | RS485 | RS485 | RS485 |
| Communication with Portal | WiFi | WiFi | WiFi | WiFi |
| Weight (kg) | 28.8 | 32.3 | 32.3 | 32.3 |
| Dimension (W × H × D mm) | 415 × 791 × 175 | 415 × 791 × 175 | 415 × 791 × 175 | 415 × 791 × 175 |
| Topology | Non-isolated | Non-isolated | Non-isolated | Non-isolated |
| Self-consumption at Night (W)*6 | <20 | <20 | <20 | <20 |
| Ingress Protection Rating | IP65 | IP65 | IP65 | IP65 |
| Mounting Method | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted |
|
|
