| Brand Name : | Goodwe |
| Model Number : | GW5000S-BP |
| Certification : | SAA / CE / ROHS / ISO9001 / CCC |
| Price : | negotiable |
| Supply Ability : | 1000units/week |

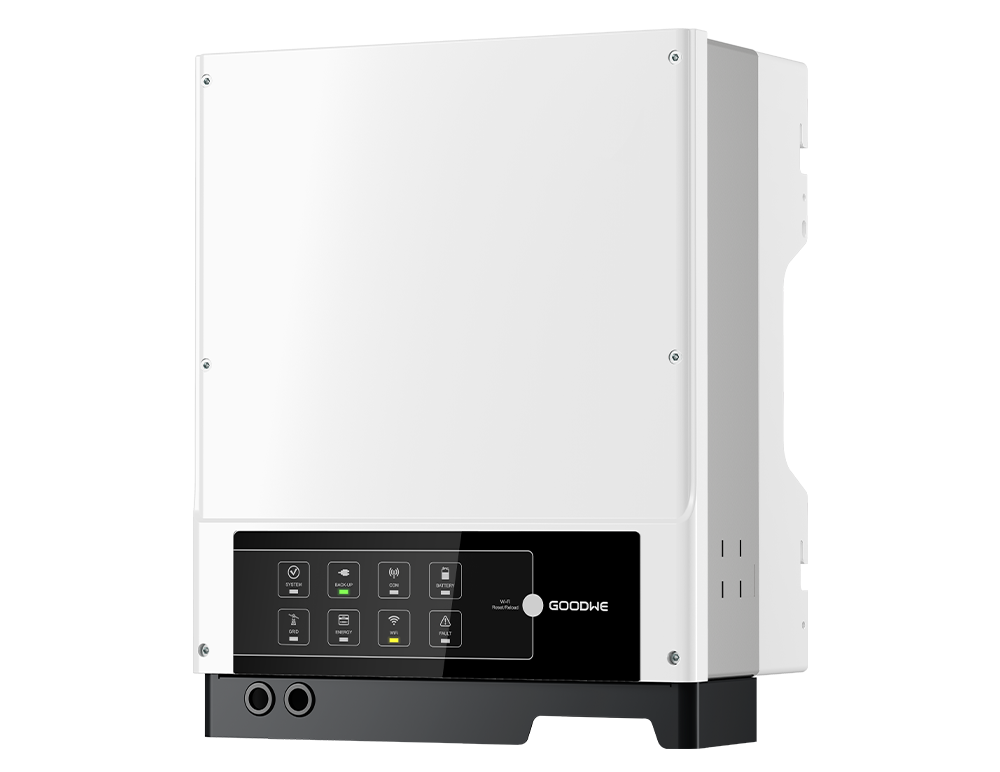

Goodwe SBP Series GW5000S-BP 5kW Single Phase Hybrid inverter
Goodwe Hybrid Inverter Hybrid Solar Inverter
| Battery Input Data | ||
| Battery Type*1 | Li-Ion | Li-Ion |
| Nominal Battery Voltage (V) | 48 | 48 |
| Battery Voltage range (V) | 40 ~ 60 | 40 ~ 60 |
| Max. Continuous Charging Current (A)*1 | 75 | 100 |
| Max. Continuous Discharging Current (A)*1 | 75 | 100 |
| Max. Charging Power (W) | 3500 | 4700 |
| Max. Discharging Power (W) | 3900 | 5300 |
| AC Output Data (On-grid) | ||
| Nominal Apparent Power Output to Utility Grid (VA) | 3680 | 5000 |
| Max. Apparent Power Output to Utility Grid (VA)*2 | 3680 | 5000 |
| Max. Apparent Power from Utility Grid (VA) | 7360 | 9200 |
| Nominal Output Voltage (V) | 230 | 230 |
| Nominal AC Grid Frequency (Hz) | 50 / 60 | 50 / 60 |
| Max. AC Current Output to Utility Grid (A) | 16.0 | 22.8 |
| Max. AC Current From Utility Grid (A) | 32 | 40 |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | |
| Max. Total Harmonic Distortion | <3% | <3% |
| AC Output Data (Back-up) | ||
| Back-up Nominal Apparent Power (VA) | 3680 | 5000 |
| Max. Output Apparent Power (VA)*3 | 3680 (4416@10sec) | 5000 (5500@10sec) |
| Max. Output Current (A) | 16.0 | 22.8 |
| Nominal Output Voltage (V) | 230 | 230 |
| Nominal Output Frequency (Hz) | 50 / 60 (±0.2%) | 50 / 60 (±0.2%) |
| Output THDv (@Linear Load) | <3% | <3% |
| Efficiency | ||
| Max. Efficiency | 95.5% | 95.5% |
| European Efficiency | 94.0% | 94.0% |
| Max. Battery to AC Efficiency | 95.5% | 95.5% |
| Protection | ||
| Anti-islanding Protection | AFDPF + AQDPF*4 | AFDPF + AQDPF*4 |
| AC Overcurrent Protection | Integrated | Integrated |
| AC Short Circuit Protection | Integrated | Integrated |
| AC Overvoltage Protection | Integrated | Integrated |
| General Data | ||
| Operating Temperature Range (°C) | -25 ~ +60 | -25 ~ +60 |
| Relative Humidity | 0 ~ 95% | 0 ~ 95% |
| Max. Operating Altitude (m)*6 | 4000 | 4000 |
| Cooling Method | Natural Convection | Natural Convection |
| User Interface | LED, APP | LED, APP |
| Communication with BMS*5 | RS485, CAN | RS485, CAN |
| Communication with Meter | RS485 | RS485 |
| Communication with Portal | WiFi | WiFi |
| Weight (kg) | 18.5 | 18.5 |
| Dimension (W × H × D mm) | 347 × 432 × 190 | 347 × 432 × 190 |
| Noise Emission (dB) | <25 | <25 |
| Topology | Non-isolated | Non-isolated |
| Self-consumption at Night (W) | <15 | <15 |
| Ingress Protection Rating | IP65 | IP65 |
| Mounting Method | Wall Bracket | Wall Bracket |
|
|
