| Brand Name : | Goodwe |
| Model Number : | GW6000-MS-30 |
| Certification : | SAA / CE / ROHS / ISO9001 / CCC |
| Price : | negotiable |
| Supply Ability : | 1000units/week |

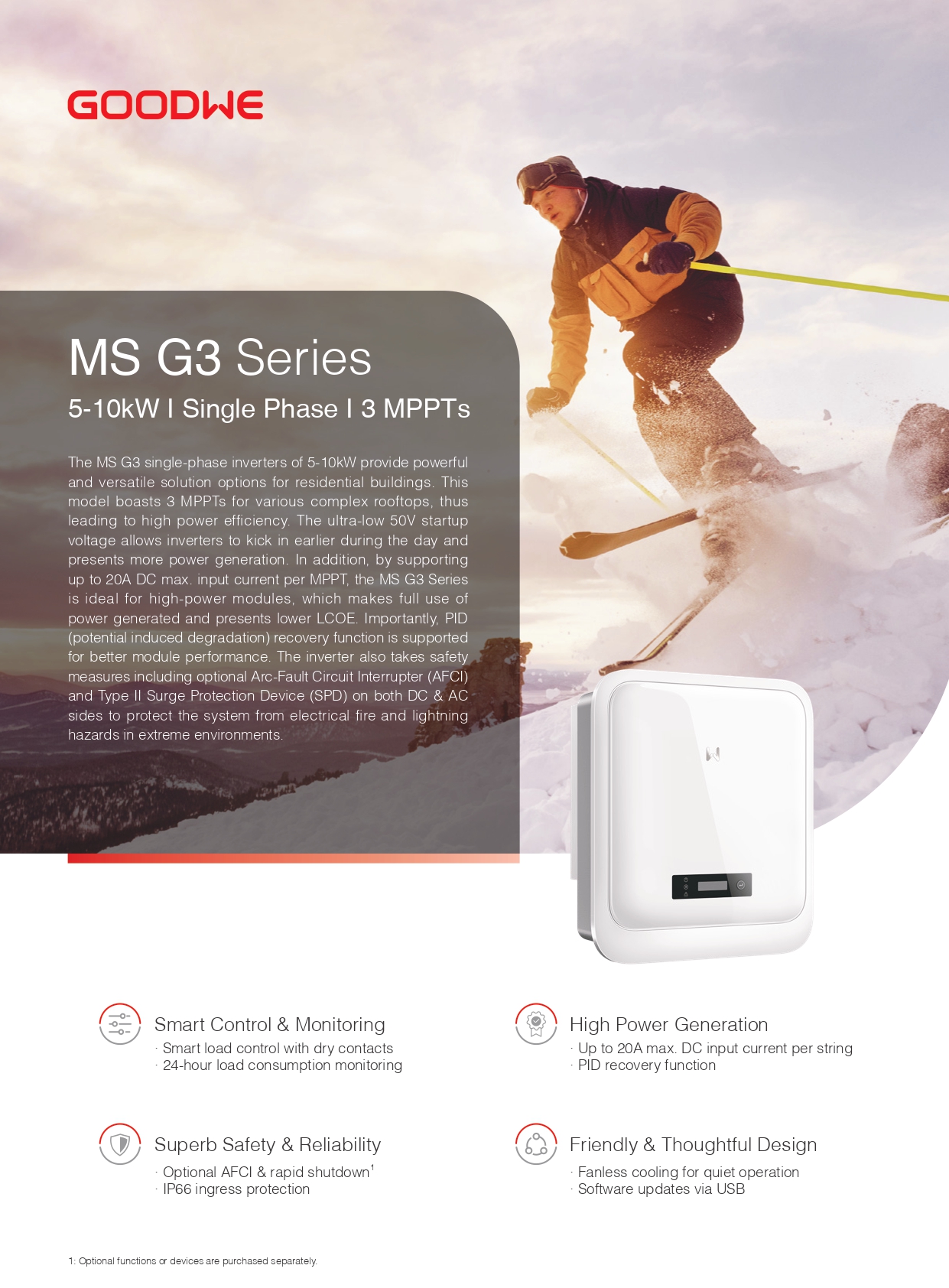

Goodwe 6kW on grid inverter single phase on grid solar inverter residential solar inverter
| Input | ||||||
| Max. Input Voltage (V) | 600 | |||||
| MPPT Operating Voltage Range (V) | 40 ~ 560 | |||||
| Start-up Voltage (V) | 50 | |||||
| Nominal Input Voltage (V) | 360 | |||||
| Max. Input Current per MPPT (A) | 20 | |||||
| Max. Short Circuit Current per MPPT (A) | 25 | |||||
| Number of MPP Trackers | 3 | |||||
| Number of Strings per MPPT | 1 | |||||
| Output | ||||||
| Nominal Output Power (W) | 5000 | 6000 | 7000 | 8500 | 10000 | |
| Nominal Output Apparent Power (VA) | 5000 | 6000 | 7000 | 8500 | 10000 | |
| Max. AC Active Power (W)*1*7 | 5500 | 6600 | 7700 | 9350 | 10000 | |
| Max. AC Apparent Power (VA)*2*7 | 5500 | 6600 | 7700 | 9350 | 10000 | |
| Nominal Output Voltage (V) | 220 / 230 / 240 | |||||
| Output Voltage Range (V) (according to local standard) | 160 ~ 270 | |||||
| Nominal AC Grid Frequency (Hz) | 50 / 60 | |||||
| AC Grid Frequency Range (Hz) | 45 ~ 55 / 55 ~ 65 | |||||
| Max. Output Current (A)*3 | 24.0 | 28.7 | 33.5 | 40.7 | 43.5*6 | |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | |||||
| Max. Total Harmonic Distortion | <3% | |||||
| Efficiency | ||||||
| Max. Efficiency*4 | 97.8% | 97.8% | 97.7% | 97.9% | 97.9% | |
| European Efficiency*5 | 97.2% | 97.2% | 97.1% | 97.3% | 97.3% | |
| Protection | ||||||
| PV String Current Monitoring | Integrated | |||||
| PV Insulation Resistance Detection | Integrated | |||||
| Residual Current Monitoring | Integrated | |||||
| PV Reverse Polarity Protection | Integrated | |||||
| Anti-islanding Protection | Integrated | |||||
| AC Overcurrent Protection | Integrated | |||||
| AC Short Circuit Protection | Integrated | |||||
| AC Overvoltage Protection | Integrated | |||||
| DC Switch | Integrated | |||||
| DC Surge Protection | Type III (Type II Optional) | |||||
| AC Surge Protection | Type III (Type II Optional) | |||||
| AFCI | Optional | |||||
| Rapid Shutdown | Optional | |||||
| Remote Shutdown | Optional | |||||
| PID Recovery | Optional | |||||
| Power Supply at Night | Optional | |||||
| General Data | ||||||
| Operating Temperature Range (°C) | -25 ~ +60 | |||||
| Relative Humidity | 0 ~ 100% | |||||
| Max. Operating Altitude (m) | 4000 | |||||
| Cooling Method | Natural Convection | |||||
| User Interface | LED, LCD (Optional), WLAN + APP | |||||
| Communication | WiFi, RS485 or LAN (Optional) | |||||
| Communication Protocols | Modbus-RTU (SunSpec Compliant) | |||||
| Weight (kg) | 19.0 | |||||
| Dimension (W × H × D mm) | 441 × 507 × 210 | |||||
| Noise Emission (dB) | <30 | |||||
| Topology | Non-isolated | |||||
| Self-consumption at Night (W) | <1 | |||||
| Ingress Protection Rating | IP66 | |||||
| DC Connector | MC4 (2.5 ~ 4mm2) | |||||
| AC Connector | Plug and play connector (Max. 16mm2) | |||||
| *1: For Brazil Max. AC Active Power (W) GW7000-MS-30 is 7000,
GW8500-MS-30 is 8500. *2: For Brazil Max. AC Apparent Power (VA) GW7000-MS-30 is 7000, GW8500-MS-30 is 8500. *3: For Brazil Max. Output Current (A) GW7000-MS-30 33.5, GW8500-MS-30 is 40.7, GW10K-MS-30 is 45.5. *4: For Brazil Max. Efficiency GW7000-MS-30 is 97.5%, GW8500-MS-30 is 97.8%, GW10K-MS-30 is 97.8%. *5: For Brazil European Efficiency GW7000-MS-30 is 97.0%, GW8500-MS-30 is 97.2%, GW10K-MS-30 is 97.2%. | *6: For where the Nominal Output Voltage (V) is 220, Max. Output
Current (A) GW10K- MS-30 is 45.5, Nominal Output Current (A)
GW10K-MS-30 is 45.5. *7: For Chile Max. AC Active Power (W) & Max. Output Apparent Power(VA) GW5000- MS-30 is 5000, GW6000-MS-30 is 6000, GW7000-MS-30 is 7000, GW8500-MS-30 is 8500, GW10K-MS-30 is 10000. *: Please visit GoodWe website for the latest certificates. *: All pictures shown are for reference only. Actual appearance may vary. | |||||
|
|
