    GW6K-DT 6kW Goodwe On Grid Inverter On Grid Solar Inverter three phase residential commercial solar inverter

    Ask Lasest Price
    Brand Name : Goodwe
    Model Number : GW6K-DT
    Certification : SAA / CE / ROHS / ISO9001 / CCC
    Price : negotiable
    Supply Ability : 1000units/week
    • Product Details
    • Company Profile

    GW6K-DT 6kW Goodwe On Grid Inverter On Grid Solar Inverter three phase residential commercial solar inverter

    GW6K-DT 6kW Goodwe On Grid Inverter On Grid Solar Inverter three phase residential commercial solar inverter

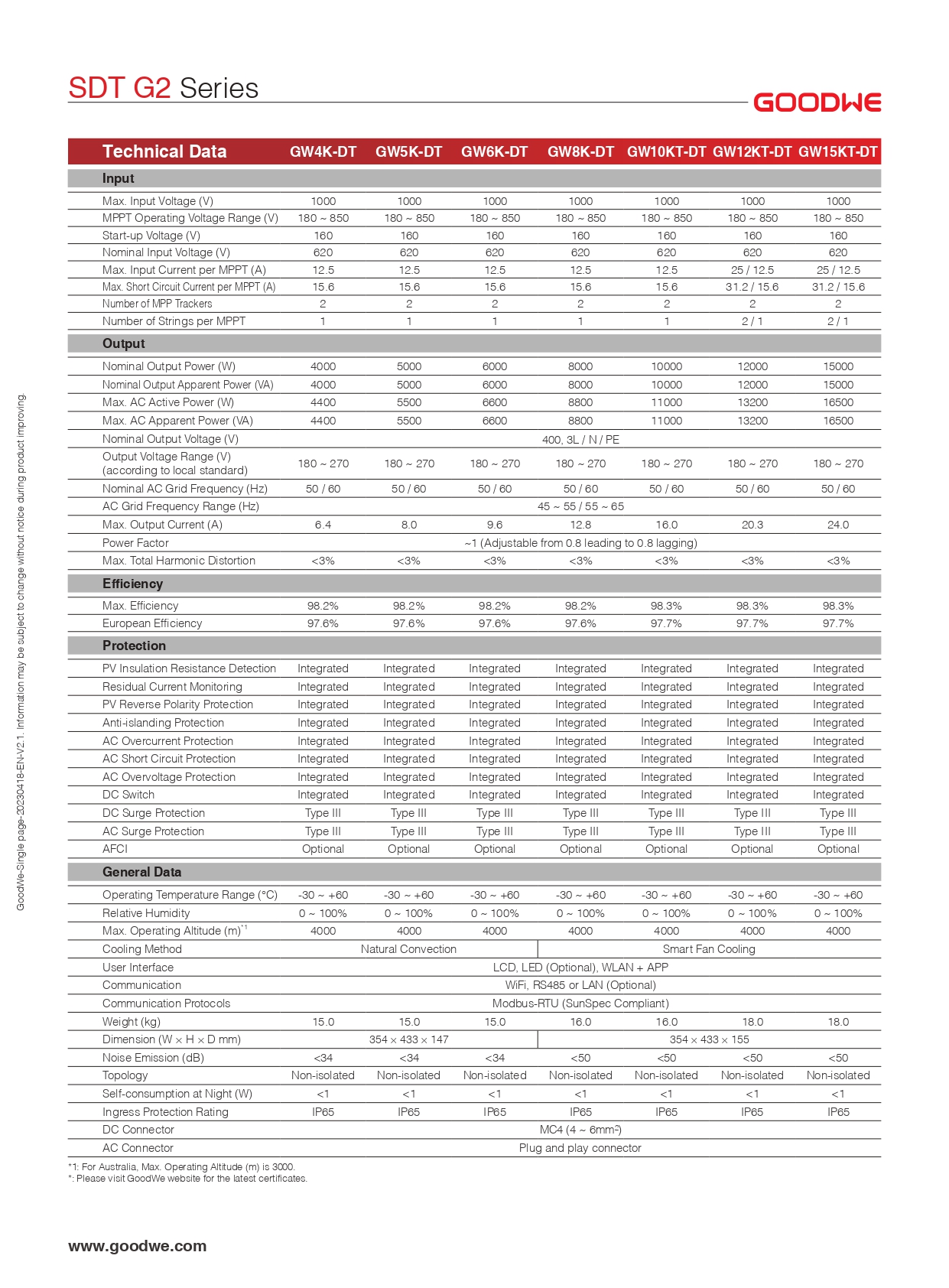

    Input
    Max. Input Voltage (V)1000100010001000100010001000
    MPPT Operating Voltage Range (V)180 ~ 850180 ~ 850180 ~ 850180 ~ 850180 ~ 850180 ~ 850180 ~ 850
    Start-up Voltage (V)160160160160160160160
    Nominal Input Voltage (V)620620620620620620620
    Max. Input Current per MPPT (A)12.512.512.512.512.525 / 12.525 / 12.5
    Max. Short Circuit Current per MPPT (A)15.615.615.615.615.631.2 / 15.631.2 / 15.6
    Number of MPP Trackers2222222
    Number of Strings per MPPT111112 / 12 / 1
    Output
    Nominal Output Power (W)4000500060008000100001200015000
    Nominal Output Apparent Power (VA)4000500060008000100001200015000
    Max. AC Active Power (W)4400550066008800110001320016500
    Max. AC Apparent Power (VA)4400550066008800110001320016500
    Nominal Output Voltage (V)   400, 3L / N / PE
    Output Voltage Range (V) (according to local standard)180 ~ 270180 ~ 270180 ~ 270180 ~ 270180 ~ 270180 ~ 270180 ~ 270
    Nominal AC Grid Frequency (Hz)50 / 6050 / 6050 / 6050 / 6050 / 6050 / 6050 / 60
    AC Grid Frequency Range (Hz)   45 ~ 55 / 55 ~ 65
    Max. Output Current (A)6.48.09.612.816.020.324.0
    Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging)
    Max. Total Harmonic Distortion<3%<3%<3%<3%<3%<3%<3%
    Efficiency
    Max. Efficiency98.2%98.2%98.2%98.2%98.3%98.3%98.3%
    European Efficiency97.6%97.6%97.6%97.6%97.7%97.7%97.7%
    Protection
    PV Insulation Resistance DetectionIntegratedIntegratedIntegratedIntegratedIntegratedIntegratedIntegrated
    Residual Current MonitoringIntegratedIntegratedIntegratedIntegratedIntegratedIntegratedIntegrated
    PV Reverse Polarity ProtectionIntegratedIntegratedIntegratedIntegratedIntegratedIntegratedIntegrated
    Anti-islanding ProtectionIntegratedIntegratedIntegratedIntegratedIntegratedIntegratedIntegrated
    AC Overcurrent ProtectionIntegratedIntegratedIntegratedIntegratedIntegratedIntegratedIntegrated
    AC Short Circuit ProtectionIntegratedIntegratedIntegratedIntegratedIntegratedIntegratedIntegrated
    AC Overvoltage ProtectionIntegratedIntegratedIntegratedIntegratedIntegratedIntegratedIntegrated
    DC SwitchIntegratedIntegratedIntegratedIntegratedIntegratedIntegratedIntegrated
    DC Surge ProtectionType IIIType IIIType IIIType IIIType IIIType IIIType III
    AC Surge ProtectionType IIIType IIIType IIIType IIIType IIIType IIIType III
    AFCIOptionalOptionalOptionalOptionalOptionalOptionalOptional
    General Data
    Operating Temperature Range (°C)-30 ~ +60-30 ~ +60-30 ~ +60-30 ~ +60-30 ~ +60-30 ~ +60-30 ~ +60
    Relative Humidity0 ~ 100%0 ~ 100%0 ~ 100%0 ~ 100%0 ~ 100%0 ~ 100%0 ~ 100%
    Max. Operating Altitude (m)*14000400040004000400040004000
    User Interface  LCD, LED (Optional), WLAN + APP
    Communication  WiFi, RS485 or LAN (Optional)
    Communication Protocols  Modbus-RTU (SunSpec Compliant)
    Weight (kg)15.015.015.0 16.0 16.018.018.0
    Noise Emission (dB)<34<34<34 <50 <50<50<50
    TopologyNon-isolatedNon-isolatedNon-isolated Non-isolated Non-isolatedNon-isolatedNon-isolated
    Self-consumption at Night (W)<1<1<1 <1 <1<1<1
    Ingress Protection RatingIP65IP65IP65 IP65 IP65IP65IP65
    DC Connector  MC4 (4 ~ 6mm²)
    AC Connector  Plug and play connector
