    ES G2 GW5000-ES-20 Goodwe Hybrid Inverter 5kw Single Phase Solar Inverter

    Ask Lasest Price
    Brand Name : Goodwe
    Model Number : GW5000-ES-20
    Certification : SAA / CE / ROHS / ISO9001 / CCC
    Price : negotiable
    Supply Ability : 1000units/week
    • Product Details
    • Company Profile

    ES G2 GW5000-ES-20 Goodwe Hybrid Inverter 5kw Single Phase Solar Inverter

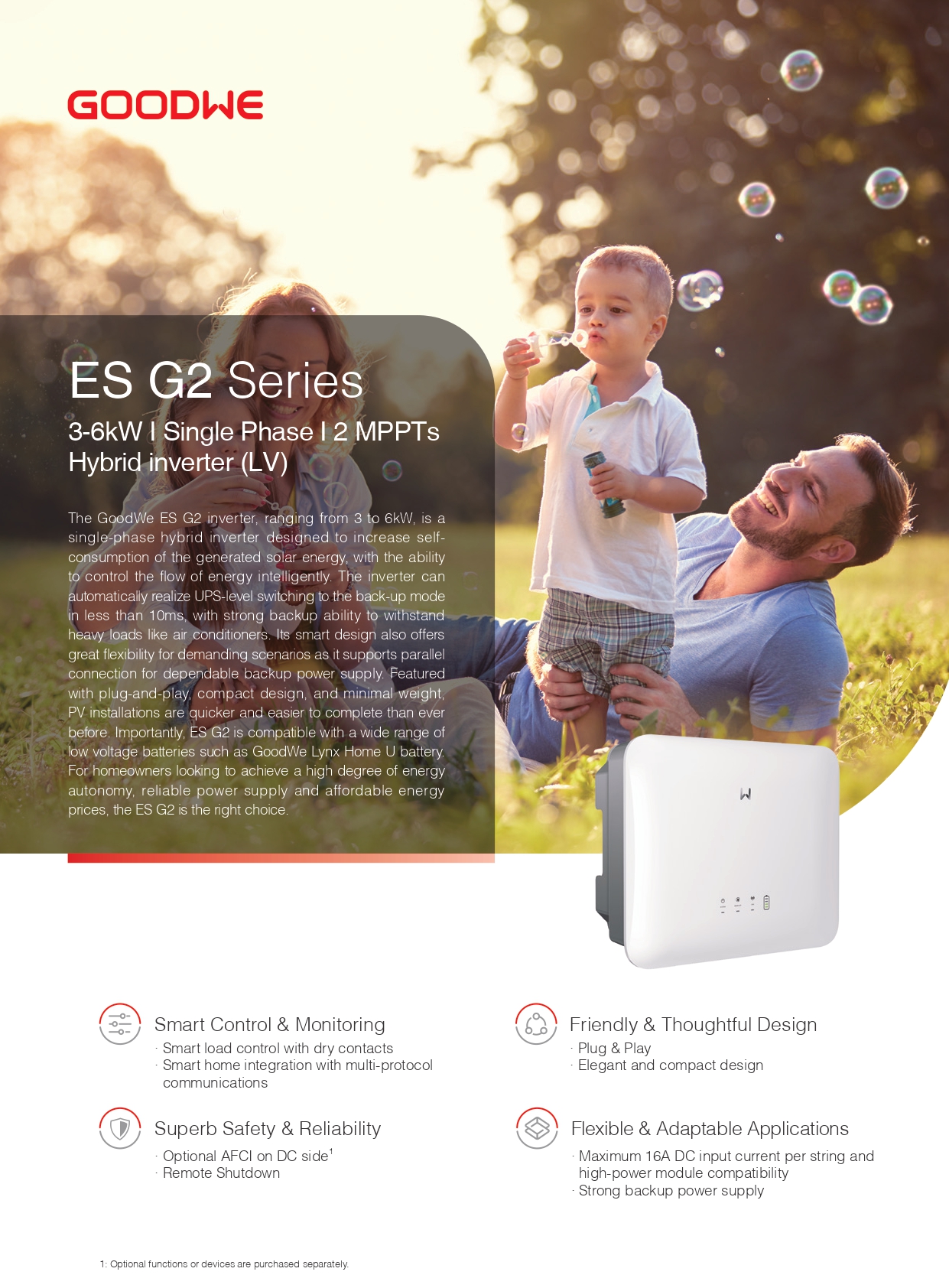

    Goodwe ES G2 Series GW5000-ES-20 Hybrid Solar Inverter Goodwe Hybrid Inverter 5kW single phase hybrid solar inverter


    Battery Input Data

    Battery Type*1   Li-Ion
    Nominal Battery Voltage (V)   48
    Battery Voltage Range (V)   40 ~ 60
    Max. Continuous Charging Current (A)*16075601206012060
    Max. Continuous Discharging Current (A)*16075601206012060
    Max. Charge Power (W)*13000360030005000300060003000
    Max. Discharge Power (W)3200390032005300320063003200

    PV String Input Data

    Max. Input Power (W)*24500540054007500750090009000
    Max. Input Voltage (V)   600
    MPPT Operating Voltage Range (V)   60 ~ 550
    Start-up Voltage (V)   58
    Nominal Input Voltage (V)   360
    Max. Input Current per MPPT (A)   16
    Max. Short Circuit Current per MPPT (A)   23
    Number of MPP Trackers1222222
    Number of Strings per MPPT   1

    AC Output Data (On-grid)

    Nominal Apparent Power Output to Utility Grid (VA)3000368036805000*35000*36000*36000*3
    Max. Apparent Power Output to Utility Grid (VA)3000368036805000*35000*36000*36000*3
    Max. Apparent Power from Utility Grid (VA)600073603680100005000100006000
    Nominal Output Voltage (V)   220 / 230 / 240
    Nominal AC Grid Frequency (Hz)   50 / 60
    Max. AC Current Output to Utility Grid (A)13.616.716.722.722.727.327.3
    Max. AC Current From Utility Grid (A)27.333.516.743.522.743.527.3
    Power Factor  ~1 (Adjustable from 0.8 leading to 0.8 lagging)
    Max. Total Harmonic Distortion   <3%

    AC Output Data (Back-up)

    Back-up Nominal Apparent Power (VA)3000368036805000500060006000
    Max. Output Apparent Power (VA)3000 (6000@10sec)3680 (7360@10sec)36805000 (10000@10sec)50006000 (10000@10sec)6000
    Max. Output Current (A)13.616.716.722.722.727.327.3
    Nominal Output Voltage (V)   220 / 230 / 240
    Nominal Output Freqency (Hz)   50 / 60
    Output THDv (@Linear Load)   <3%

    Efficiency

    Max. Efficiency   97.6%
    European Efficiency   96.7%
    Max. Battery to AC Efficiency   95.5%
    MPPT Efficiency   99.9%

    Protection

    PV String Current Monitoring   Integrated
    PV Insulation Resistance Detection   Integrated
    Residual Current Monitoring   Integrated
    PV Reverse Polarity Protection   Integrated
    Anti-islanding Protection   Integrated
    AC Overcurrent Protection   Integrated
    AC Short Circuit Protection   Integrated
    AC Overvoltage Protection   Integrated
    DC Switch   Integrated
    DC Surge Protection   Type II
    AC Surge Protection   Type III
    AFCI   Optional
    Remote Shutdown   Integrated

    General Data

    Operating Temperature Range (°C)   -25 ~ +60
    Relative Humidity   0 ~ 95%
    Max. Operating Altitude (m)  3000 (>2000 Derating)
    Cooling Method  Natural Convection
    Display  LED, WLAN + APP
    Communication with BMS   CAN
    Communication with Meter   RS485
    Communication with Portal  WiFi / WiFi + LAN / 4G
    Weight (kg)19.620.820.021.520.021.520.0
    Dimension (W × H × D mm)  505.9 × 434.9 × 154.8
    Topology   Non-isolated
    Self-consumption at Night (W)   <10
    Ingress Protection Rating   IP65
    Mounting Method   Wall Mounted
    *1: The actual charge and discharge current / power also depends on the battery.
    *2: The max power is the actual power of PV.
    *3: 4600 for VDE-AR-N4105 & NRS 097-2-1.
    *: Please visit GoodWe website for the latest certificates.
    *: All pictures shown are for reference only. Actual appearance may vary.
