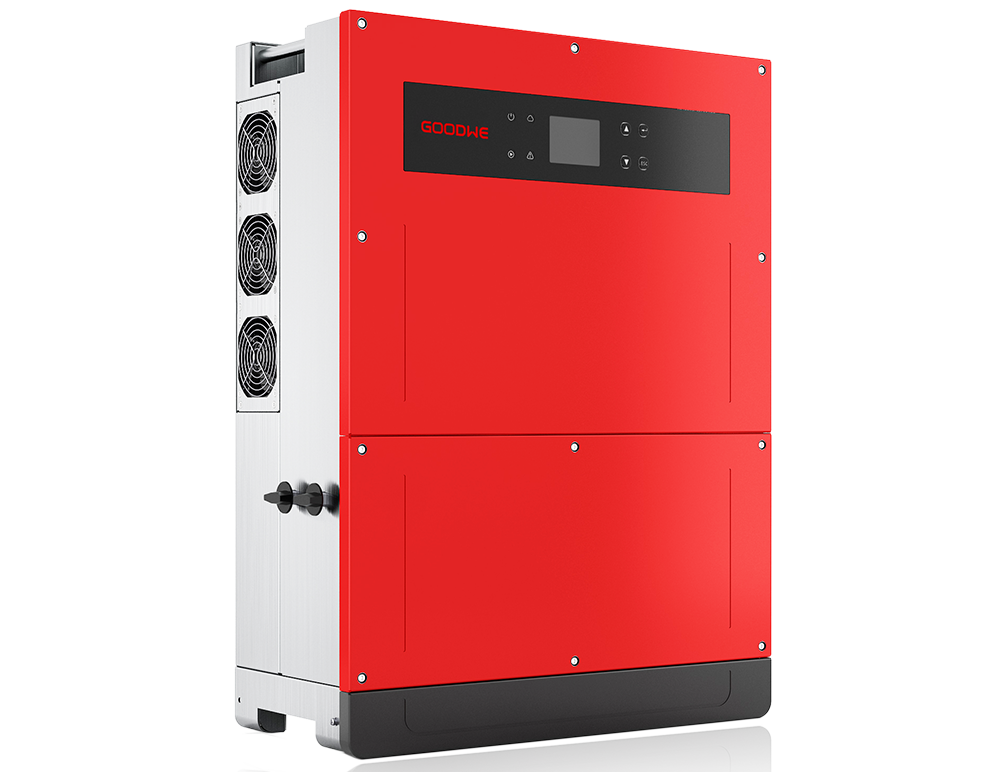

LVMT GW50KLV-MT Goodwe On Grid Inverter 50kW Three phase on grid solar inverter commercial industrial solar inverter

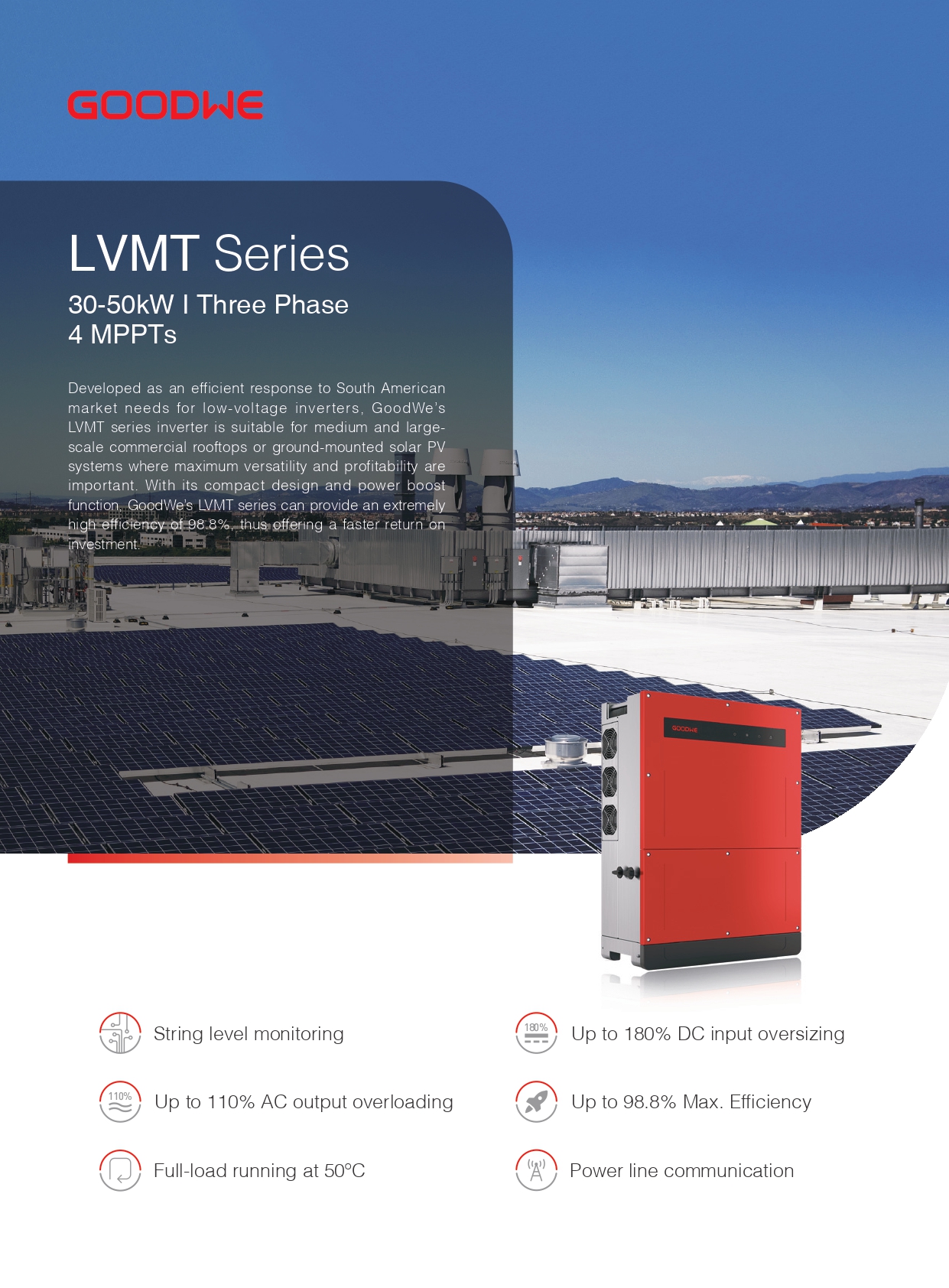

LVMT Series
Technical Data	GW30KLV-MT	GW35KLV-MT	GW50KLV-MT
Input
Max. Input Voltage (V)	800
MPPT Operating Voltage Range (V)	200 ~ 650
Start-up Voltage (V)	200
Nominal Input Voltage (V)	370
Max. Input Current per MPPT (A)	33 / 33 / 22 / 22	33	44
Max. Short Circuit Current per MPPT (A)	41.5 / 41.5 / 27.5 / 27.5	41.5	55
Number of MPP Trackers	4
Number of Strings per MPPT	3 / 3 / 2 / 2	3	4
Output
Nominal Output Power (W)	30000	36000	50000
Nominal Output Apparent Power (VA)	30000	36000	50000
Max. AC Active Power (W)	28800@208V; 30000@220V; 33000@240V;	34500@208V; 36000@220V; 39900@240V;	47300@208V; 50000@220V; 55000@240V;
Max. AC Apparent Power (VA)	33000	39900	55000
Nominal Output Voltage (V)	220, 3L / N / PE or 3L / PE
Nominal AC Grid Frequency (Hz)	50 / 60
Max. Output Current (A)	80.0	96.0	133.0
Power Factor	~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion	<3%
Efficiency
Max. Efficiency	98.7%	98.8%	98.7%
European Efficiency	98.3%	98.5%	98.3%
Protection
PV String Current Monitoring	Integrated
PV Insulation Resistance Detection	Integrated
Residual Current Monitoring	Integrated
PV Reverse Polarity Protection	Integrated
Anti-islanding Protection	Integrated
AC Overcurrent Protection	Integrated
AC Short Circuit Protection	Integrated
AC Overvoltage Protection	Integrated
DC Switch	Optional
DC Surge Protection	Type II
AC Surge Protection	Type II
AFCI	Optional
PID Recovery	Optional
General Data
Operating Temperature Range (ºC)	-30 ~ +60
Relative Humidity	0 ~ 100%
Max. Operating Altitude (m)	4000
Cooling Method	Fan Cooling
User Interface	LED, LCD (Optional), WiFi + APP	LED, LCD (Optional), WiFi + APP	LED, WiFi + APP
Communication	RS485, WiFi (Optional)	RS485, WiFi (Optional)	RS485, WiFi, PLC (Optional)
Weight (kg)	59.0	64.0	70.0
Dimension (W × H × D mm)	586 × 788 × 264	586 × 788 × 264	586 × 788 × 267
Topology	Non-isolated
Self-consumption at Night (W)	<1
Ingress Protection Rating	IP65
